Fast and effective

Q-GRAFT

The system for harvesting regenerative cells (SVF) that can be used at the point-of-care.

메인 이미지

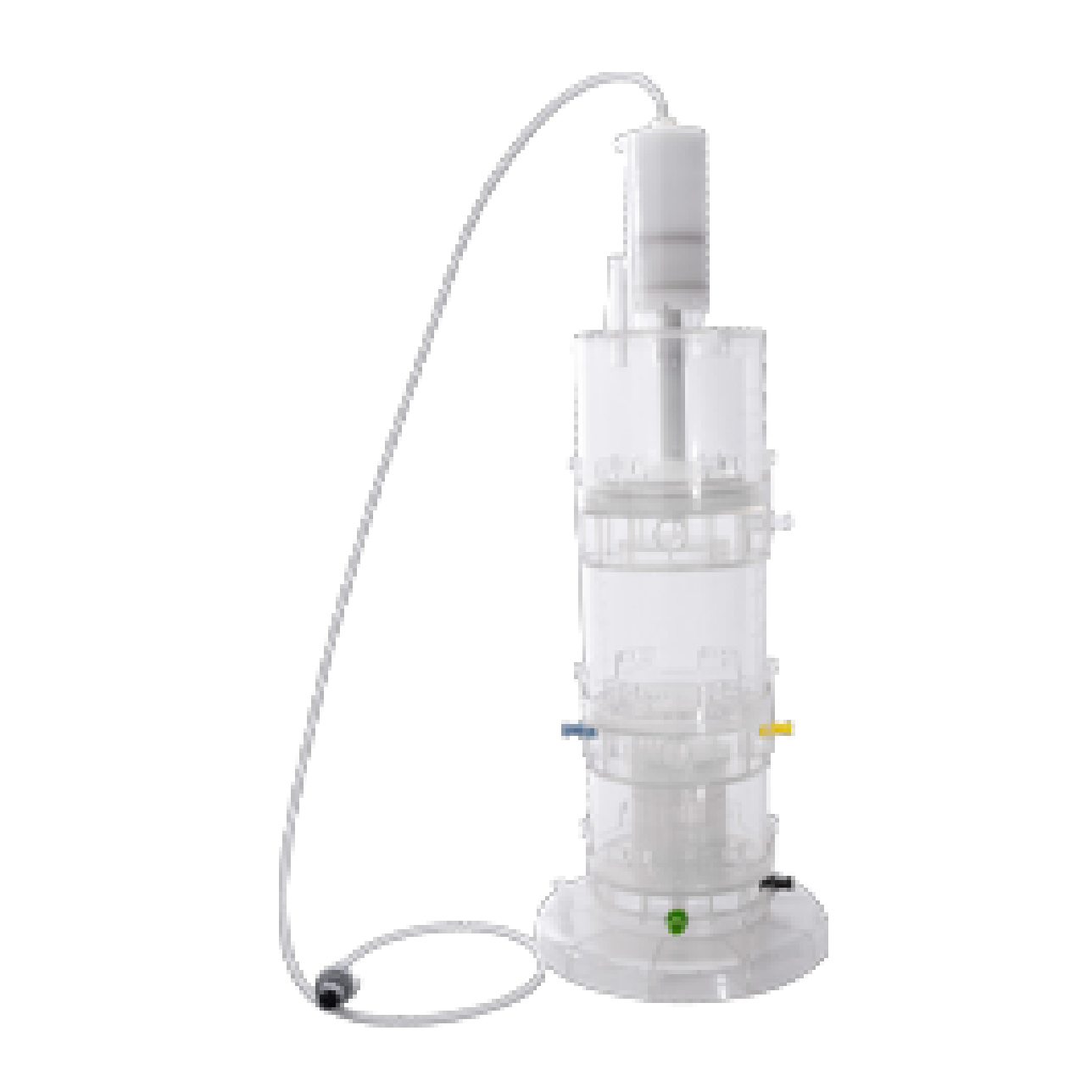

Q-graft® collector


Dimensions

14,2 (ø) x 40 (H)cm

Vacuum supply
-500mbar
Weight
540g
Mixing Frequency
15/min
Aspirate volume/Lipocollector function
75m

Rotation during

NONE

Maximum fill volume upper chamber

200ml

cross-flow filtration

480/min
Volume of SVF cell suspension
20ml
Control temperature during incubation
38°C

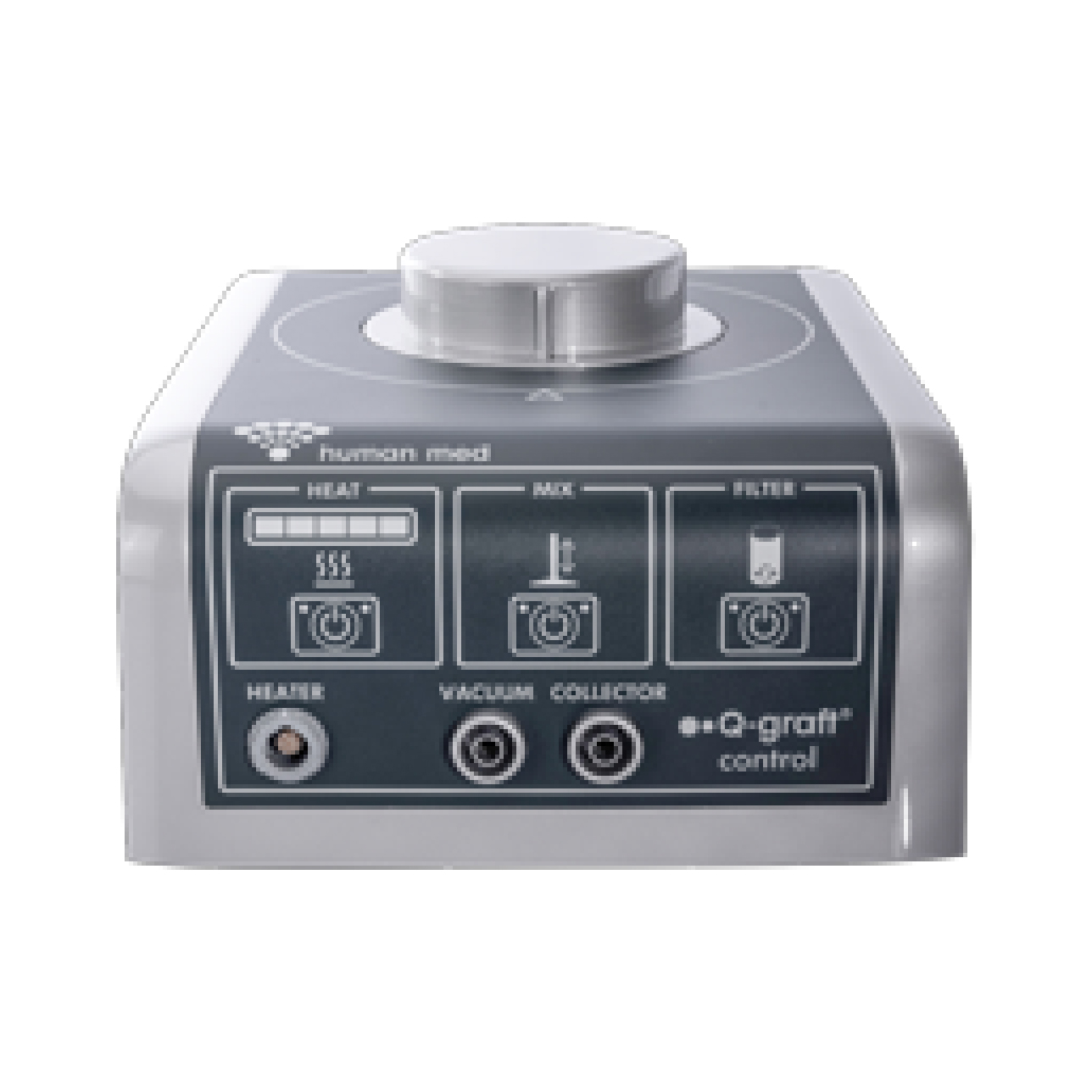

Q-graft® control


Dimensions (without Q-graft® collector)

25 (H) x 20 (T) x 15 (B)cm

Voltage
100-240V (wide-band power supply)
Weight
1600g
Protection class
II


Fast and effective

Q-GRAFT

The system for harvesting regenerative cells (SVF) that can be used at the point-of-care.

Q-graft® collector


Dimensions

14,2 (ø) x 40 (H)cm

Vacuum supply
-500mbar
Weight
540g
Mixing Frequency
15/min
Aspirate volume/Lipocollector function
75m

Rotation during

NONE

Maximum fill volume upper chamber

200ml

cross-flow filtration

480/min
Volume of SVF cell suspension
20ml
Control temperature during incubation
38°C

Q-graft® control


Dimensions

(without Q-graft® collector)

25 (H) x 20 (T) x 15 (B)cm

Voltage
100-240V
 (wide-band power supply)
Weight
1600g
Protection class
II


메인 이미지

HUMAN MED®

An innovator and leading company in the field of water-jet assisted surgery.


As the world’s first and leading manufacturer of water-jet-based aesthetic medical devices, HUMAN MED® has built a long-standing legacy of success with its precise tissue dissection technology used in general surgery, urology, neurosurgery, and more. Since 2004, HUMAN MED® has expanded its vision into the aesthetic medicine field.

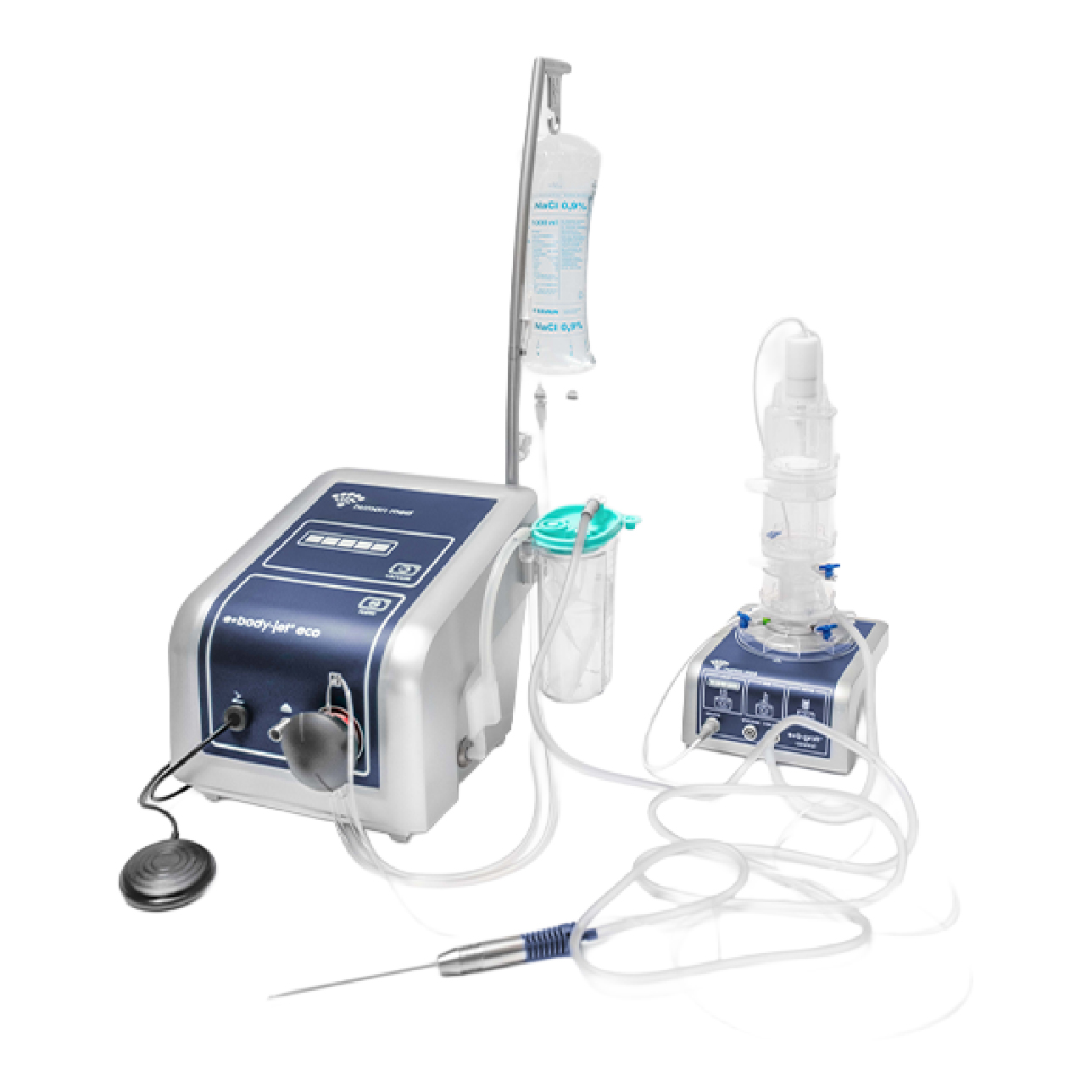

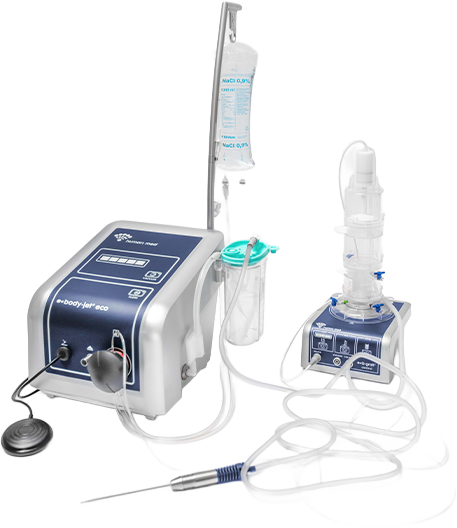

**With the launch of its innovative device, the body-jet® EVO, the water-jet-based liposuction system for removing unwanted body fat has brought a fundamental shift in autologous lipoplasty and fat harvesting techniques. ;


In addition, the innovative Q-graft® system enables the intraoperative filtration and harvesting of regenerative cells from collected fat during liposuction. This unique approach offers exciting possibilities for adipose-derived stem cell research and the development of new therapeutic applications.

UMECO, a comprehensive trading group connecting technology with health & beauty.
We deliver verified products with the utmost speed and responsibility, and operate as a trusted business partner.
HUMAN MED®
An innovator and leading company in the field of water-jet assisted surgery.

As the world’s first and leading manufacturer of water-jet-based aesthetic medical devices, HUMAN MED® has built a long-standing legacy of success with its precise tissue dissection technology used in general surgery, urology, neurosurgery, and more. Since 2004, HUMAN MED® has expanded its vision into the aesthetic medicine field


**With the launch of its innovative device, the body-jet® EVO, the water-jet-based liposuction system for removing unwanted body fat has brought a fundamental shift in autologous lipoplasty and fat harvesting techniques.


In addition, the innovative Q-graft® system enables the intraoperative filtration and harvesting of regenerative cells from collected fat during liposuction. This unique approach offers exciting possibilities for adipose-derived stem cell research and the development of new therapeutic applications.


UMECO, a comprehensive trading group connecting technology with health & beauty.
We deliver verified products with the utmost speed and responsibility,
and operate as a trusted business partner.
